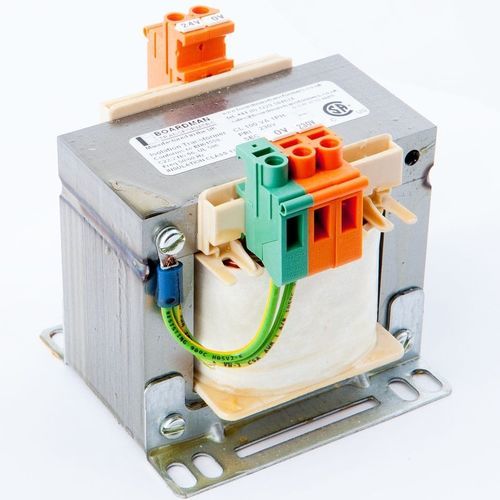

Control transformer C series

isolationpowerencapsulated

Boardman Transformers are certified and listed to manufacture Bespoke 25VA to 5kVA Control Transformers that meet the standards and requirements of the Canadian cCSAus Standard. This indicator means that the product is certified for both the U.S. and Canadian markets, to the applicable U.S. and Canadian standards, including UL, ANSI, ASME, ASTM, ASSE, CSA, NSF. The cCSAus Marks mean that a product has been widely tested for safety and performance in line with the applicable standards, including the standards written or administered by the: • American National Standards Institute (ANSI) • Underwriters Laboratories (UL) • Canadian Standards Association (CSA) • National Sanitation Foundation International (NSF) • Other additional accredited bodies. Our transformers offer good access to the four-hole fixing, touch-proof terminals and full varnish impregnation to protect against humidity. • Control Transformer : Class 1 Isolation Transformer with Earth Screen between Primary and Secondary • Standard : C22.2 No. 66.1-06, C22.2 No. 66.0-06, UL5085-1, UL5085-2 • Insulation Class : B • Dielectric Strength : 250VA or Less 250VA to 5000 VA • Winding to winding and winding to core : For 25V Winding 1050V 250V or less 2500V 26V - 250V 1500V 251 - 600V 4000V 251 - 600V 2500V • Ambient Temperature : 25℃
