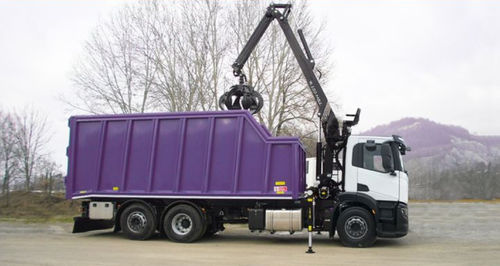

Truck-mounted crane R 150 MS1articulatedliftinghydraulic
Add to favorites
Compare this product
Characteristics
- Configuration
- truck-mounted
- Structure
- articulated
- Applications
- lifting
- Other characteristics
- hydraulic
- Lift capacity
Max.: 2,260 kg
(4,982.4 lb)Min.: 1 kg
(2.2 lb)- Working height
Max.: 10 m
(32'09" )Min.: 0 m
(0'00" )
Description
• NOT FOLDABLE
• Class HIB4
• Lifting torque = 150 kNm
• Hydraulic outreach = 7,60 m
• First boom fixed
• Second boom with hydraulic extension with integrated service pipes
• Proportional valve control from the seat with two additional elements at
the end of the boom
• Stabilizers with extension, hydraulic descent and 1800 hydraulic rotation
• Stabilizers with bilateral ground control
• 4250 rotation with double rack
• Construction in accordance with Machinery Directive 2006/42/CE and
standard AN12999
• Base crane weight': 2.770 kg
