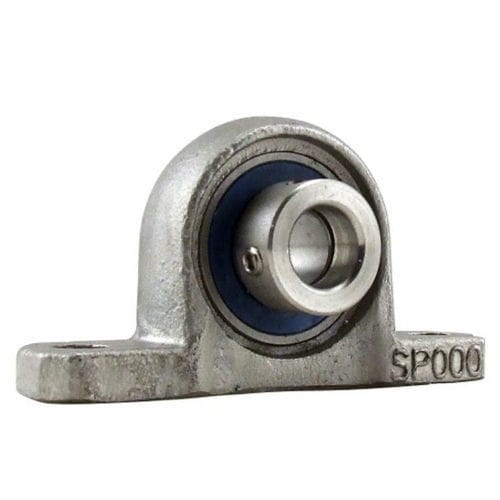

Pillow block-bearing SUP series

with ball bearingstainless steelwith eccentric locking collar

Stainless Steel Mini Pillow Block Mounted Unit Bearings with Eccentric Locking Collar (SUP) have stainless steel housings and stainless steel inserts. Pillow Blocks have a bearing fitted into a housing and are used when the bearing mounting surface is parallel to the shaft axis. The housing is bolted to a foundation through the holes in the base. The locking collar has a recess made eccentric to the bore. When assembled on the shaft, this eccentric recess engages with an eccentric cam end of a bearing's inner ring. The collar is engaged on the inner cam of the bearing. This assembly grips the shaft tightly. The collar set screw provides additional locking.
