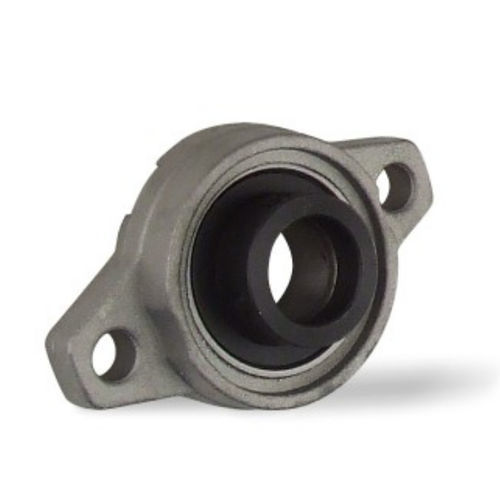

Flange bearing unit SUFL00 serieswith ball bearingstainless steelwith eccentric locking collar
Add to favorites
Compare this product
Characteristics
- Type
- flange
- Rolling element
- with ball bearing
- Material
- stainless steel
- Other characteristics
- with eccentric locking collar
Description
Stainless Steel Mini Two Bolt Flange Mounted Unit Bearings with Eccentric Locking Collar (SUFL) have stainless steel housings and stainless steel inserts. Bearings that are mounted within a flanged housing are used when the bearing mounting surface is perpendicular to a shaft axis. The housing is bolted to a foundation through the holes in the base. The locking collar has a recess made eccentric to the bore. When assembled on the shaft, this eccentric recess engages with an eccentric cam end of a bearing's inner ring. The collar is engaged on the inner cam of the bearing. This assembly grips the shaft tightly. The collar set screw provides additional locking.
Catalogs
Other Boca Bearing Company products
Mounted Unit Miniature Bearings
