5-axis CNC machining center FMC-600V
verticaldouble-columnwith rotary tilting table

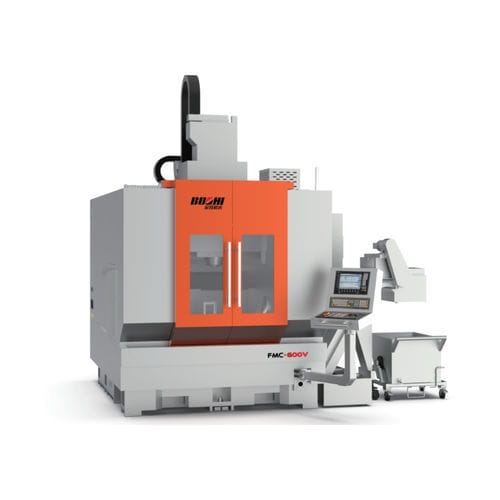

5-axis CNC machining center - FMC-600V - BOCHI Machine Tool Group Co., Ltd. - vertical / double-column / with rotary tilting table

Add to favorites

Compare this product

Characteristics

Number of axes: 5-axis
Spindle orientation: vertical
Structure: double-column, with rotary tilting table
Spindle mount: HSK A-63
Number of tool stations: 32 tools
Applications: for the automobile industry, for molds, for gas turbines
Other characteristics: high-performance, high-productivity, precision
X travel: 700 mm
(27.56 in)
Y travel: 760 mm
(29.92 in)
Z travel: 500 mm
(19.69 in)
Rotational speed: 18,000 rpm
(113,097 rad.min-1)
Power: 35 kW
(47.59 hp)
Table rotation (C axis): 360 °
Work feed X-axis: 48 m/min
Work feed Y-axis: 48 m/min
Work feed Z-axis: 48 m/min
Table load capacity: 600 kg
(1,323 lb)
Tool weight (max): 8 kg
(17.6 lb)
Weight: 13,500 kg
(29,762.41 lb)

Description

The FMC-600V is a high-end 5-axis vertical Machining Center. The machine tool adopts the double column elevated structure, vertical processing, equipped with the cradle style double swing rotary table; Thought the twice clamping operations can complete the complete processing of complex precision parts, greatly improving production efficiency, product quality, and reducing production costs, Mainly used for efficient five axis machining of complex shaped parts such as gas turbines, compressor impellers, and small molds, it is an essential equipment in industries such as auto industry, and molds. This machine is currently a typical model widely used in 5-axis simultaneous machining .
