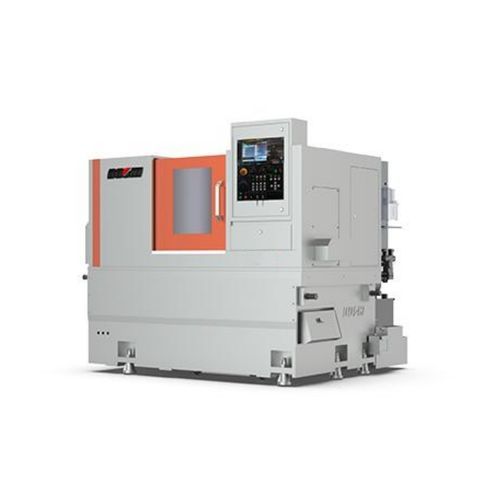

CNC turning center BC3751-H
3-axisA2-612 tools

CNC turning center
CNC turning center
Add to favorites
Compare this product

Go to the BOCHI Machine Tool Group Co., Ltd. website for more information

Characteristics

Control type
CNC
Number of axes
3-axis
Spindle mount
A2-6
Number of tool stations
12 tools
Applications
for automotive applications
Performance
high-performance
Other characteristics
multi-function
Associated function
milling
Diameter

345 mm, 550 mm
(13.58 in, 21.65 in)

Spindle speed

Max.: 4,500 rpm
(28,274.334 rad.min-1)

Min.: 50 rpm
(314.159 rad.min-1)

Rapids on X

30 m/min

Rapids on Z

30 m/min

Nominal power

11 kW, 16.5 kW
(15 hp, 22.4 hp)

Overall lenght

2,350 mm, 3,800 mm
(93 in, 150 in)

Overall width

1,800 mm, 2,600 mm
(71 in, 102 in)

Overall height

1,900 mm
(75 in)

Weight

4,700 kg, 5,000 kg
(10,362 lb, 11,023 lb)

Description

BC3751-H is a high-performance and multifunctional turning center. Machine tool has C-axis and milling functions, which can finish most or all of the processing of complex parts in one installation. It is particularly suitable for the processing of complex shaped parts and can better adapt to the increasing demand for CNC machine tool functions and high accuracy demands in industries such as ,automotive, light industry, and machinery.
