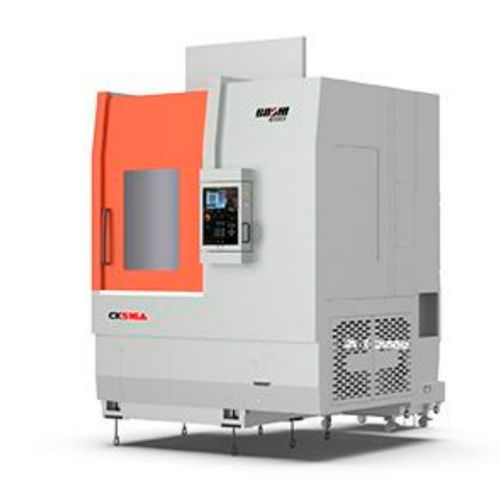

CNC turning center CX516vertical3-axis40 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 3-axis
- Number of tool stations
- 40 tools
- Applications
- for automotive applications, for molds, for coupling sleeve machining
- Performance
- high-speed
- Associated function
- milling
- Diameter
800 mm
(31.5 in)- Spindle speed
1,500 rpm
(9,424.778 rad.min-1)- Axe X
1,020 mm
(40 in)- Axe Z
650 mm
(26 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Overall lenght
5,267 mm
(207 in)- Overall width
3,310 mm
(130 in)- Overall height
3,875 mm
(153 in)- Weight
11,000 kg
(24,251 lb)
Description
CX516 is a high-efficiency vertical turning center with three-axis linkage function, seamless integration of turning and milling modes, direct-drive structure of turning and milling spindles,equipped with 40-station tool changer, which can be used for precision and high-efficiency turning and milling composite machining of disk and sleeve parts, and is widely used in the manufacturing industries of electronics, ships, automobiles, high-speed railways, medical equipments, molds and dies, and IT. The machine tool can be equipped with online inspection, high-pressure chipbreaking and other functions, which can be used for single-machine machining or multi-machine linkage to realize automative operation
