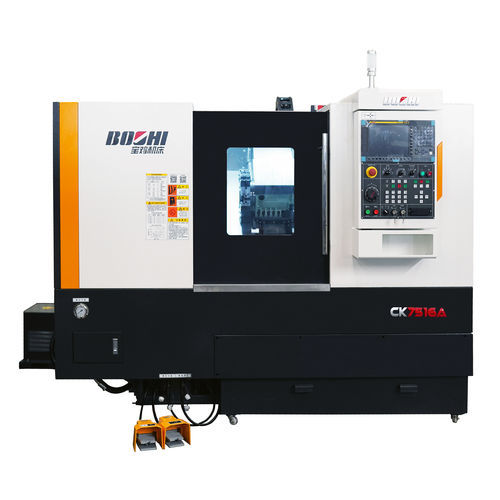

CNC lathe CK7516 series horizontal2-axisA2-5
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools, 8 tools
- Diameter
260 mm, 400 mm
(10.24 in, 15.75 in)- Spindle speed
Max.: 5,500 rpm
(34,557.519 rad.min-1)Min.: 55 rpm
(345.575 rad.min-1)- Maximum part length
400 mm, 1,000 mm
(16 in, 39 in)- Maximum cutting diameter
285 mm
(11 in)- Bar capacity
42 mm
(2 in)- Axe X
165 mm
(6 in)- Axe Z
410 mm, 1,030 mm
(16 in, 41 in)- Rapids on X
12 m/min
- Rapids on Z
16 m/min
- Nominal power
7.5 kW, 11 kW, 15 kW
(10.2 hp, 15 hp, 20.4 hp)- Overall lenght
2,370 mm, 3,195 mm
(93 in, 126 in)- Overall width
1,670 mm, 1,695 mm
(66 in, 67 in)- Overall height
1,970 mm
(78 in)- Weight
3,000 kg, 4,500 kg
(6,614 lb, 9,921 lb)
Description
CK7516 series CNC lathe adopts high strength cast iron, bed base integral structure, inclined guide rail, through-hole spindle structure, vibration resistance design and wide area AC spindle motor, spindle bearing and feed screw special bearing transmission noise is low; Equipped with multi-station turret tool rest, can be continuous indexing, knife replacement nearby. The machine can be equipped with Japan FANUC 0I-TF, Germany Siemens 828D CNC system, also can be selected from other brands of CNC system at home and abroad.
