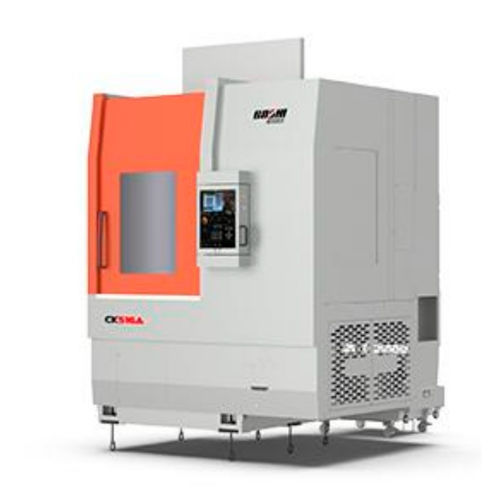

CNC lathe CK516Avertical2-axisfor large parts
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Applications
- for large parts
- Other characteristics
- with turret
- Diameter
850 mm
(33.46 in)- Spindle speed
Max.: 1,200 rpm
(7,539.822 rad.min-1)Min.: 80 rpm
(502.655 rad.min-1)- Maximum cutting diameter
750 mm
(30 in)- Axe X
640 mm
(25 in)- Axe Z
650 mm
(26 in)- Rapids on X
14 m/min
- Rapids on Z
14 m/min
- Nominal power
30 kW, 37 kW
(40.8 hp, 50.3 hp)- Overall lenght
2,500 mm
(98 in)- Overall width
2,600 mm
(102 in)- Overall height
3,400 mm
(134 in)- Weight
10,000 kg
(22,046 lb)
Description
CK516A is a CNC vertical lathe adopt the linear rolling guide rails, equipped with FANUC 0i-TF (5) CNC system and vertical turret tool holder, suitable for processing large and medium-sized disc and cover parts. Vertical structure makes it easy to clamp workpieces and occupies a small area
