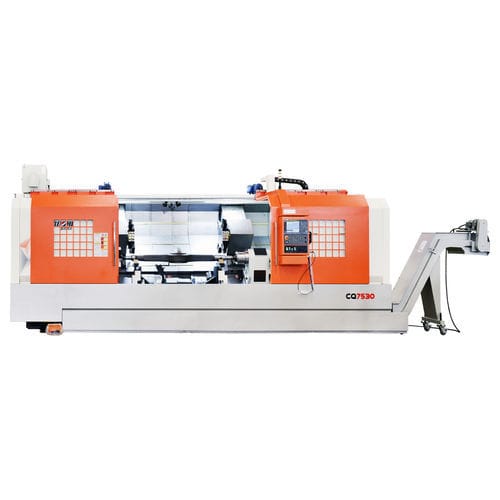

Double-spindle lathe CQ75 series
CNChorizontal2-axis

double-spindle lathe
double-spindle lathe
Add to favorites
Compare this product

Go to the BOCHI Machine Tool Group Co., Ltd. website for more information

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Spindle mount
A2-8, A2-11
Applications
for automotive applications
Other characteristics
double-spindle, double-turret
Diameter

500 mm, 650 mm, 850 mm
(19.69 in, 25.59 in, 33.46 in)

Spindle speed

Max.: 1,600 rpm
(10,053.096 rad.min-1)

Min.: 25 rpm
(157.08 rad.min-1)

Maximum part length

2,600 mm
(102 in)

Maximum cutting diameter

550 mm
(22 in)

Axe X

300 mm
(12 in)

Axe Z

700 mm, 1,200 mm, 1,400 mm
(28 in, 47 in, 55 in)

Rapids on X

12 m/min

Rapids on Z

15 m/min

Nominal power

22 kW, 30 kW
(29.9 hp, 40.8 hp)

Maximum torque

12 Nm, 22 Nm
(9 ft.lb, 16 ft.lb)

Overall lenght

8,600 mm, 8,880 mm
(339 in, 350 in)

Overall width

3,260 mm, 3,810 mm
(128 in, 150 in)

Overall height

2,870 mm, 2,930 mm
(113 in, 115 in)

Weight

16,500 kg, 17,000 kg, 17,500 kg, 18,000 kg
(36,376 lb, 37,479 lb, 38,581 lb, 39,683 lb)

Description

CQ7530, CQ7550 CNC lathe is a double spindle, double tool rack special CNC lathe developed for automobile axle turning processing. The machine is equipped with special hydraulic workpiece bracket for axle processing to realize automatic positioning, loading and unloading of axle, convenient and reliable operation. The machine is not only suitable for axle processing, but also for both ends of similar axle, axle and other parts turning at the same time. The X direction of CQ7530 machine adopts roller linear guide pair, Z direction adopts high stiffness, wide rectangular hardened guide, the machine has good rigidity and high processing efficiency. CQ7550 machine X/Z direction are roller linear guide pair, machine equipped with light screen detection, mobile control box, more suitable for automatic line production and processing.
