- BOCHI Machine Tool Group Co., Ltd.

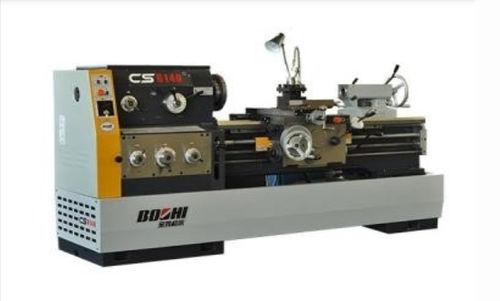

Conventional lathe CS6 serieshorizontal2-axisdrilling
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Applications
- drilling
- Other characteristics
- boring
- Diameter
220 mm, 300 mm, 400 mm, 500 mm
(8.66 in, 11.81 in, 15.75 in, 19.69 in)- Spindle speed
Min.: 9 rpm
(56.549 rad.min-1)Max.: 1,600 rpm
(10,053.096 rad.min-1)- Maximum cutting length
950 mm, 1,450 mm, 1,950 mm, 2,950 mm
(37 in, 57 in, 77 in, 116 in)- Bar capacity
52 mm
(2 in)- Nominal power
7.5 kW
(10.2 hp)- Overall lenght
2,632 mm, 3,132 mm, 3,632 mm, 4,632 mm
(104 in, 123 in, 143 in, 182 in)- Overall width
975 mm
(38 in)- Overall height
1,230 mm, 1,270 mm
(48 in, 50 in)- Weight
2,100 kg, 2,300 kg, 2,450 kg, 2,850 kg
(4,630 lb, 5,071 lb, 5,401 lb, 6,283 lb)
Description
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
