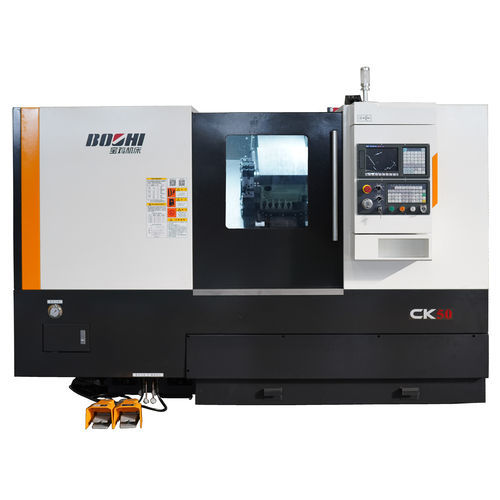

CNC lathe CK40/50horizontal2-axisA2-5
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools, 8 tools
- Other characteristics
- high-precision, high-performance, finishing, spindle
- Diameter
260 mm, 400 mm
(10.24 in, 15.75 in)- Spindle speed
Max.: 4,500 rpm
(28,274.334 rad.min-1)Min.: 70 rpm
(439.823 rad.min-1)- Maximum cutting diameter
285 mm
(11 in)- Maximum cutting length
400 mm, 1,000 mm
(16 in, 39 in)- Bar capacity
42 mm
(2 in)- Axe X
165 mm
(6 in)- Axe Z
410 mm, 1,030 mm
(16 in, 41 in)- Rapids on X
12 m/min, 30 m/min
- Rapids on Z
16 m/min, 24 m/min
- Nominal power
7.5 kW
(10.2 hp)- Overall lenght
2,370 mm, 3,200 mm
(93 in, 126 in)- Overall width
1,670 mm, 1,695 mm, 1,700 mm
(66 in, 67 in, 67 in)- Overall height
1,910 mm, 1,970 mm
(75 in, 78 in)- Weight
3,000 kg
(6,614 lb)
Description
These series machines are high precision CNC machines with good performance-price ratio.The high grade cast iron bed,slant rails and high precision cartridge type spindle are designed to damp vibration. The multi-station turret changes tools in the nearest path. Equipped with FANUC 0i mate control system.The machines,with a new appearance,easy-operated panel and full enclosed protection,are suitable for finishing or semi-finishing medium or small type workpieces.
Catalogs
CONTENTS
66 Pages
BOCHI CATALOG
66 Pages
