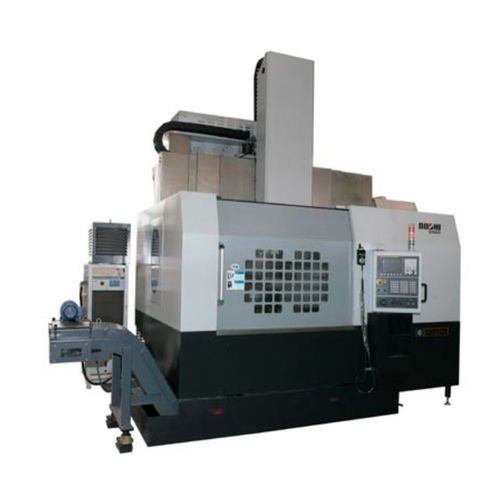

CNC lathe CK51125vertical2-axis4 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Number of tool stations
- 4 tools
- Applications
- for large workpieces
- Other characteristics
- high-precision, powerful, high-speed, automated loading/unloading, column type, boring, with turret
- Diameter
1,050 mm, 1,250 mm
(41.34 in, 49.21 in)- Maximum cutting diameter
1,100 mm
(43 in)- Axe X
800 mm
(31 in)- Axe Z
800 mm
(31 in)- Rapids on X
10 m/min
- Rapids on Z
10 m/min
- Nominal power
75 kW
(102 hp)- Maximum torque
9,500 Nm
(7,007 ft.lb)- Overall lenght
2,600 mm
(102 in)- Overall width
3,200 mm
(126 in)- Overall height
4,800 mm
(189 in)- Weight
20,000 kg
(44,092 lb)
Description
Powerful AC spindle motor together with ZF two-step gear box outputs large torque and revolves at high speed, meeting different needs of machining.
Boring mill jaws offer reliable and complete clamping.
Independent coolant tank is easy to clean.
Centralized machine operation panel ensures easy and quick operation.
X/Z-axis screw uses high precision ball screws and special purpose bearings for lead screw with good accuracy maintaining.
Integrated full-enclosed guard is environment-friendly and clear.
