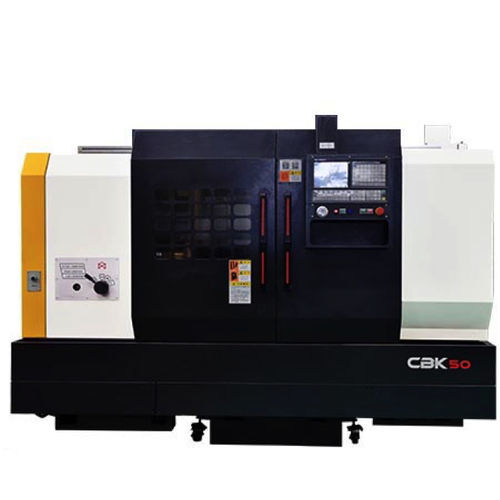

CNC lathe CBK50
horizontal2-axisA2-8

Add to favorites

Compare this product

Go to the BOCHI Machine Tool Group Co., Ltd. website for more information

Characteristics

Control type: CNC
Spindle orientation: horizontal
Number of axes: 2-axis
Spindle mount: A2-8
Number of tool stations: 4 tools, 8 tools
Applications: for shaft machining
Other characteristics: precision, high-performance, inclined bed
Diameter: 500 mm
(19.69 in)
Maximum part length: 980 mm
(39 in)
Maximum cutting diameter: 420 mm
(17 in)
Axe X: 255 mm
(10 in)
Axe Z: 1,000 mm
(39 in)
Rapids on X: 6 m/min
Rapids on Z: 8 m/min
Nominal power: 7.5 kW
(10.2 hp)
Maximum torque: 800 Nm
(590 ft.lb)
Overall lenght: 3,120 mm
(123 in)
Overall width: 1,900 mm
(75 in)
Overall height: 1,910 mm
(75 in)
Weight: 3,800 kg
(8,378 lb)

Description

CBK50 is an economical CNC lathe and can be used for processing various shapes of disc parts, annular parts, shaft parts, precision complex shape parts which can satisfy the high precision inside and outside the circle, steps, cone, sphere, thread processing. According to the requirements of the processing, hydraulic chuck and hydraulic tailstock can be used for the production of multi-variety and multi-specification parts, which is an efficient and cost-effective processing equipment. II.Construction Features Separate 45 ° inclined bed, smooth chip removal. The main shaft adopts three-gear steeple gear, with excellent rigidity and high torque; The main shaft of the through-hole type is stable and suitable for the processing of a variety of workpieces; Flexible machine configuration, can choose the broad number, cairn, and other system configuration parameters.
