- BOCHI Machine Tool Group Co., Ltd.

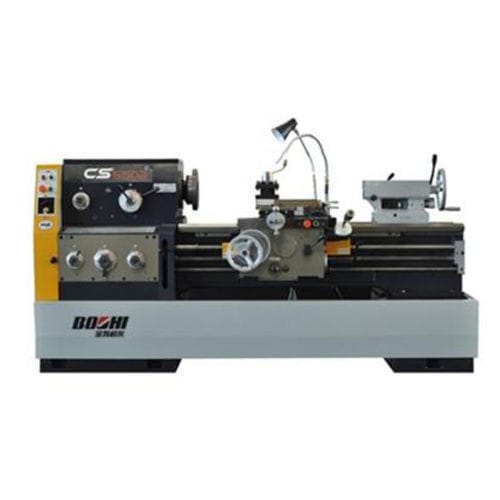

Conventional lathe CS61(2)50BCS61(2)66Bhorizontal2-axisdrilling
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Applications
- drilling
- Other characteristics
- boring, spindle
- Diameter
500 mm, 660 mm
(19.69 in, 25.98 in)- Spindle speed
Min.: 9 rpm
(56.549 rad.min-1)Max.: 1,600 rpm
(10,053.096 rad.min-1)- Maximum cutting length
950 mm, 1,450 mm, 1,950 mm, 2,950 mm
(37 in, 57 in, 77 in, 116 in)- Bar capacity
82 mm
(3 in)- Nominal power
7.5 kW
(10.2 hp)- Overall lenght
2,382 mm, 2,632 mm, 3,132 mm, 3,632 mm, 4,632 mm
(94 in, 104 in, 123 in, 143 in, 182 in)- Overall width
975 mm
(38 in)- Overall height
1,270 mm, 1,350 mm
(50 in, 53 in)- Weight
Min.: 2,100 kg
(4,630 lb)Max.: 3,000 kg
(6,614 lb)
Description
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
