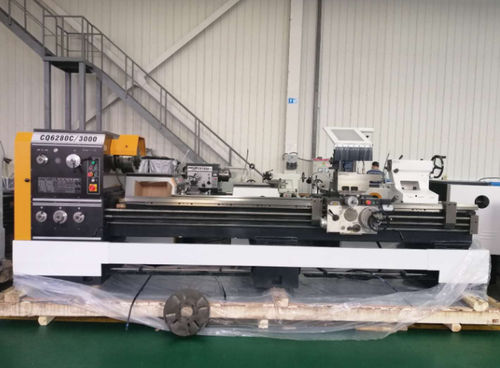

Conventional lathe CQ628 series horizontal2-axisdrilling
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Applications
- drilling
- Other characteristics
- boring, spindle
- Diameter
800 mm
(31.5 in)- Spindle speed
Min.: 8 rpm
(50.265 rad.min-1)Max.: 1,400 rpm
(8,796.459 rad.min-1)- Maximum cutting length
1,950 mm, 2,950 mm
(77 in, 116 in)- Bar capacity
82 mm, 105 mm
(3 in, 4 in)- Nominal power
7.5 kW
(10.2 hp)- Overall lenght
3,365 mm, 4,365 mm
(132 in, 172 in)- Overall width
1,340 mm
(53 in)- Overall height
1,490 mm
(59 in)- Weight
3,300 kg, 3,700 kg
(7,275 lb, 8,157 lb)
Description
—Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
—Threading Inch, Metric, Module and D.P.;
—Perform drilling, boring and groove broaching;
—Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
—Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
—There are hand brake and foot brake for users to choose;
—These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
