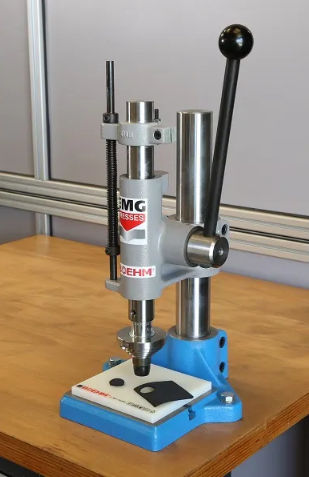

Manual press PRES4HRD60

rack-and-piniondie-cuttinghand-operated

A comfortable and quiet workstation, perfect to cut small series. This press is delivered ready to use and allows quick circular cuttings, just thanks to the lever action. It can be used with a large panel of soft materials (leather, felt, rubber, silicone...). We can make a free test with your material, don't hesitate to contact us. Technical datas Manual rack bench press 600 kg for hollow punches cutting from 1.5 to 60 mm. The power is linear and constant over the whole travel according to the applied load on the lever. Robust, accurate, flexible and ergonomic, this press is made in France by the compagny EMG. The cutting board and the fastening system for the hollow punches are included to be ready to use with all the BOEHM punches from 1.5mm to 60mm. For higher diameters (up to 100mm), it is possible to fasten the JLBM100 chuck instead of the JLBM60 chuck supplied. In this case, the chuck should be purchased in addition, but the feasibility of the application should be checked beforehand. In all cases, it is advisable to validate the feasibility of your application with this equipment. Detailed equipment composition • A manual rack bench press EMG 4HR with adjustment instructions. • Cutting board 140 X 130 X 10 mm ref: PLAG1 • Adaptor ref: JLBM53PRESSE • Chuck for hollow punches up to 60 mm ref: JLBM60PA The hollow punches are sold separately.
