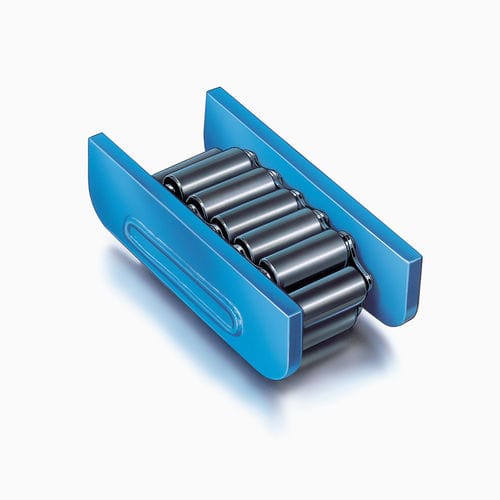

Transport moving skate C series

Applications For short distances Movement of moderately heavy loads e.g. to transport materials in ovens, for shuttering, concreting or stocking techniques can be welded to the load ideal model for confined spaces Key features Stable, solid basic construction Low level construction and smooth top achieved after welding, models N and B are the same height can be welded to the load to ensure Roller Skates and load are firmly connected Available with hardened center plate (=models C-H) or additional with higher tensile rller material 50CrV4 (=models C-H-50CrV4) Hints on use: If the rollers are being used to their maximum carrying capacity or with lengthy intervals between use, choose models with a hardened center plate (=model C-H) In case of possible overload, choose chain roller material 50CrV4 maximum speed: 5m/min The rolling resistance depends on the track. For smaller models I-IIIv 7-5%, for larger models 5-3% of the total load Can be arranged with guide rollers For scaffolding application the chain alone can be used (length according to customers’ specification)
