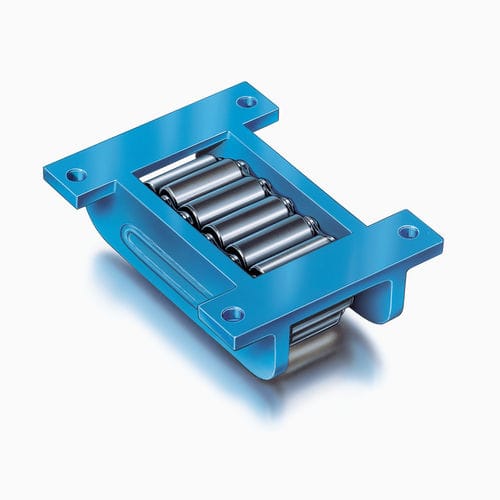

Moving skate B series

Applications For short distances movement of medium loads, eg. feed scaffolding and concrete formwork on construction sites can be bolted to the load at the lowest height Key features Stable, solid basic construction Low level is achieved by recessing the mounting plates into side walls. Model… B and …C are the same height Model B-H (with hardened centerplate) is used, when the roller skate is not moved for a long time under high load. As a result, a pressing of the hardened steel rollers in the standard non-hardened central plate is prevented and ensures a uniformly low rolling resistance Model B-H-50CrV4 (roll material 50CrV4) is recommended if the risk of short-term overload beyond the specified bearing capacity of the roller skates can not be excluded or is probable Hints on use If the rollers are being used to their maximum carrying capacity or with lengthy intervals between use, choose models with a hardened center plate (=model B-H) In case of possible overload, choose chain roller material 50CrV4 maximum speed: 5m/min The rolling resistance depends on the track. For smaller models I-IIIv 7-5%, for larger models 5-3% of the total load Can be arranged with guide rollers
