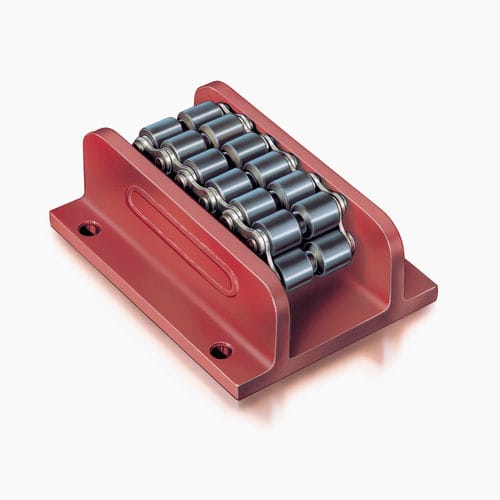

Moving skate AM-H series

Range of Application For longer distances and/or continuous movement with continuous load through medium (M) chain guide Movement of heavy loads for longer distances or for a long time e.g. for movements as a machine component, heavy duty telescope, guidance, in the machine engineering industry. particulary stable construction through continious cover plate particulary wear-resistant due to chain guide (no lateral starting of the hain, mthus no wear of the bolt heads) can be bolted to the load Key Features Extra robust construction Low level construction with higher carrying capacity, exchangeable with models …AS and …A due to same outer dimensions More stability achieved, if load is firmly bolted to roller skates More stable operation and distribution of load Reduced wear by center plate chain guide (no contact between chain and sidewalls, no wear to rivet heads) Hints on use Check with the manufacturer before selection of skates for use in a vertical posistion Models I-IIIv have 4 bolt holes as standard If problems of load distribution occur e.g. by wind forces, it is necessary to select moedel AM-H_50CrV4 Maximum speed: 5m/min The rolling resistance depends on the track. For smaller models I-IIIv 7-5%, for larger models 5-3% of the total load Available with http://boerkey-gmbh.de/de/produktuebersicht/fuehrungsrollen/ Location of the fixing holes can be arranged to suit customers’ requirements Optional in galvanised or stainless steel construction
