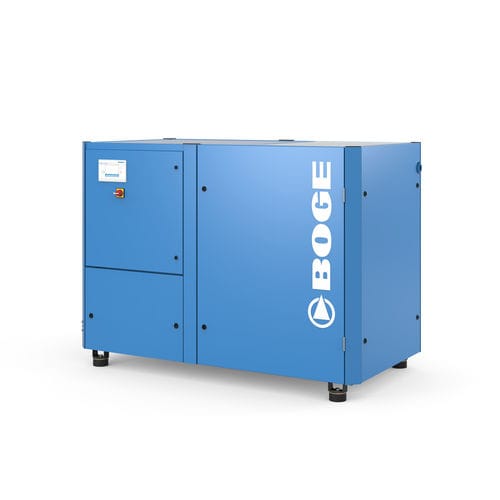

Screw compressor S series
airelectrically-poweredstationary

Screw compressor - S series - BOGE - air / electrically-powered / stationary
Screw compressor - S series - BOGE - air / electrically-powered / stationary
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
low-noise, high-efficiency, with frequency control
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 12.54 m³/min
(442.85 ft³/min)

Min.: 5.82 m³/min
(205.53 ft³/min)

Power

45 kW, 55 kW, 65 kW, 75 kW
(61.18 hp, 74.78 hp, 88.38 hp, 101.97 hp)

Length

1,995 mm
(79 in)

Width

1,455 mm
(57 in)

Height

1,065 mm
(42 in)

Weight

1,180 kg, 1,260 kg, 1,328 kg, 1,358 kg
(2,601.5 lb, 2,777.8 lb, 2,927.7 lb, 2,993.9 lb)

Description

The new generation BOGE S Series manages to be even better than its predecessor: efficiency, smoothness and sound pressure levels are all significantly optimised. Product Screw compressor, oil lubricated Advantages heat recovery can be integrated extremely quiet focus control 2.0 frequency controlled cooling fan
