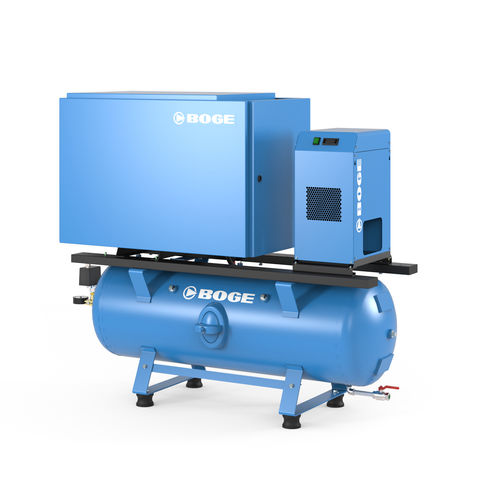

Piston compressor SBDL series
airelectrically-poweredstationary

Piston compressor - SBDL series - BOGE - air / electrically-powered / stationary
Piston compressor - SBDL series - BOGE - air / electrically-powered / stationary
Piston compressor - SBDL series - BOGE - air / electrically-powered / stationary - image - 2
Piston compressor - SBDL series - BOGE - air / electrically-powered / stationary - image - 3
Piston compressor - SBDL series - BOGE - air / electrically-powered / stationary - image - 4
Piston compressor - SBDL series - BOGE - air / electrically-powered / stationary - image - 5
Piston compressor - SBDL series - BOGE - air / electrically-powered / stationary - image - 6
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
low-noise, tank-mounted, direct-drive, with refrigerant dryer
Pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 1.46 m³/min
(51.56 ft³/min)

Min.: 0.26 m³/min
(9.18 ft³/min)

Power

Max.: 12.6 kW
(17.13 hp)

Min.: 3.2 kW
(4.35 hp)

Length

Max.: 2,480 mm
(98 in)

Min.: 1,161 mm
(46 in)

Width

Max.: 1,565 mm
(62 in)

Min.: 1,135 mm
(45 in)

Height

Max.: 790 mm
(31 in)

Min.: 480 mm
(19 in)

Weight

Max.: 500 kg
(1,102.3 lb)

Min.: 170 kg
(374.8 lb)

Description

This series offers various possibilities for extension. Together with the optional base container and a refrigerant dryer, the piston compressors make up a compressed air system that is tailored to specific application situations. Product Oil lubricated piston compressor, direct coupled, with compressed air receiver, silenced Advantages with receiver designed for 100% duty cycle available as twin unit
