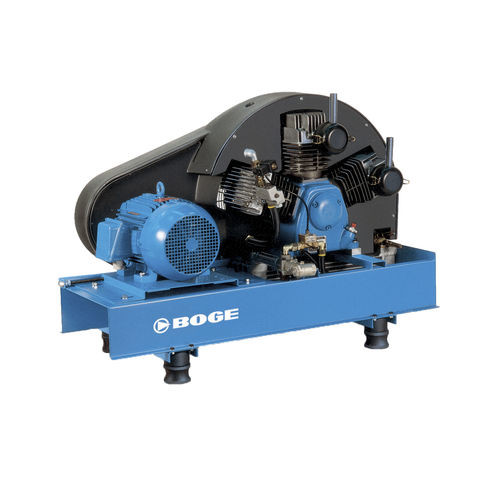

Piston compressor SRM seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- medium-pressure, skid-mounted
- Pressure
Min.: 0 bar
(0 psi)Max.: 15 bar
(217.56 psi)- Flow
Min.: 0.28 m³/min
(9.89 ft³/min)Max.: 1.62 m³/min
(57.21 ft³/min)- Power
Min.: 2.2 kW
(2.99 hp)Max.: 15 kW
(20.39 hp)- Length
1,300 mm, 1,330 mm
(51 in, 52 in)- Width
890 mm, 900 mm, 930 mm
(35 in, 35 in, 37 in)- Height
700 mm, 740 mm
(28 in, 29 in)- Weight
Min.: 160 kg
(352.7 lb)Max.: 295 kg
(650.4 lb)
Description
The piston compressors in this series deliver pressures of up to 15 bar safely and efficiently. The effectiveness of these compressors is proven and guarantees absolutely reliable compressed air supply for applications that rely on high pressures.
Product
Oil lubricated piston compressor, medium pressure
Advantages
designed for 100% duty cycle
