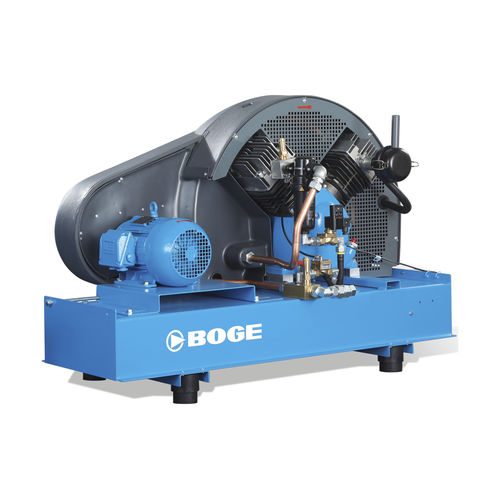

Piston compressor SRH seriesairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- low-noise, direct-drive, skid-mounted
- Pressure
Min.: 0 bar
(0 psi)Max.: 35 bar
(507.63 psi)- Flow
0.27 m³/min, 0.37 m³/min, 0.51 m³/min, 0.71 m³/min, 0.94 m³/min
(9.53 ft³/min, 13.07 ft³/min, 18.01 ft³/min, 25.07 ft³/min, 33.2 ft³/min)- Power
3 kW, 4 kW, 5.5 kW, 7.5 kW, 11 kW
(4.08 hp, 5.44 hp, 7.48 hp, 10.2 hp, 14.96 hp)- Length
1,300 mm
(51 in)- Width
890 mm, 900 mm
(35 in, 35 in)- Height
700 mm, 740 mm
(28 in, 29 in)- Weight
170 kg, 185 kg, 225 kg, 260 kg
(374.8 lb, 407.9 lb, 496 lb, 573.2 lb)
Description
The piston compressors in this series deliver pressures of up to 35 bar safely and efficiently. The effectiveness of these compressors is proven and guarantees absolutely reliable compressed air supply for applications that rely on high pressures.
Product
Oil lubricated piston compressor, direct coupled, silenced
Advantages
designed for 100% duty cycle
