Screw compressor C-2
airelectrically-poweredstationary

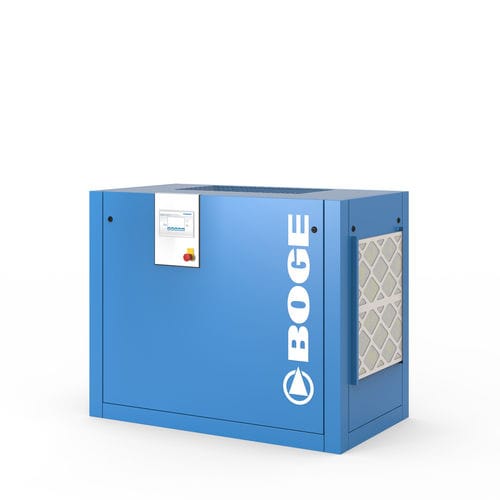

Screw compressor - C-2  - BOGE - air / electrically-powered / stationary
Screw compressor - C-2  - BOGE - air / electrically-powered / stationary
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Other characteristics
compact, low-noise, high-efficiency
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 3.64 m³/min
(128.55 ft³/min)

Min.: 1.31 m³/min
(46.26 ft³/min)

Power

11 kW, 15 kW, 18 kW, 22 kW
(14.96 hp, 20.39 hp, 24.47 hp, 29.91 hp)

Length

1,610 mm
(63 in)

Width

1,380 mm
(54 in)

Height

915 mm
(36 in)

Weight

522 kg, 532 kg, 567 kg, 597 kg
(1,150.8 lb, 1,172.9 lb, 1,250 lb, 1,316.2 lb)

Description

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. Thanks to their integrated design, they have a small footprint and generate compressed air with maximum efficiency. The latest generation of the C-series boasts increased efficiency, greater flexibility and perfect ergonomics as well as audibly lower noise emissions and easier maintenance. “Plug & work” is the order of the day! Product Compact screw compressor, oil-lubricated Advantages ergonomic control integrated design various options can be integrated e.g. heat recovery very quiet operation
