Screw compressor C-2 LDR
airelectrically-poweredstationary

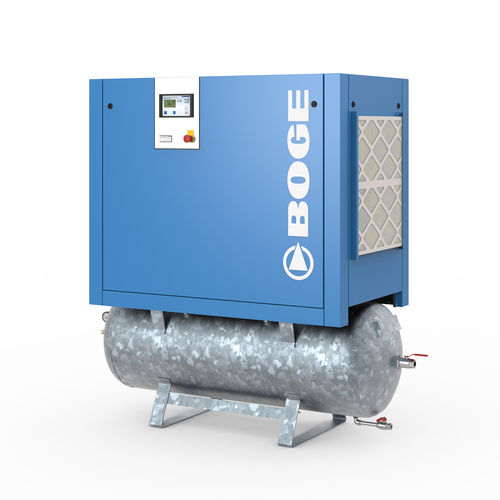

Screw compressor - C-2 LDR - BOGE - air / electrically-powered / stationary
Screw compressor - C-2 LDR - BOGE - air / electrically-powered / stationary
Screw compressor - C-2 LDR - BOGE - air / electrically-powered / stationary - image - 2
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Other characteristics
compact, low-noise, tank-mounted, high-efficiency, direct-drive, with refrigerant dryer
Pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Flow

1.74 m³/min, 1.82 m³/min, 2.22 m³/min, 2.26 m³/min
(61.45 ft³/min, 64.27 ft³/min, 78.4 ft³/min, 79.81 ft³/min)

Power

11 kW, 15 kW
(14.96 hp, 20.39 hp)

Length

2,036 mm
(80 in)

Width

1,915 mm
(75 in)

Height

915 mm
(36 in)

Weight

708 kg, 718 kg
(1,560.9 lb, 1,582.9 lb)

Description

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. Thanks to their integrated design, they have a small footprint and efficiently generate compressed air. In addition, the highly efficient, maintenance-free direct drive with elastic coupling guarantees maximum service life. Optimally tailored to your requirements with compressed air receiver, integrated refrigerant dryer and ergonomic control – efficient, compact compressed air station ready for connection with consistently high compressed air quality. Product Compact screw compressor, oil-lubricated, directly coupled, on receiver, with refrigerant dryer Advantages ergonomic control integrated design extremely quiet heat recovery can be integrated with receiver
