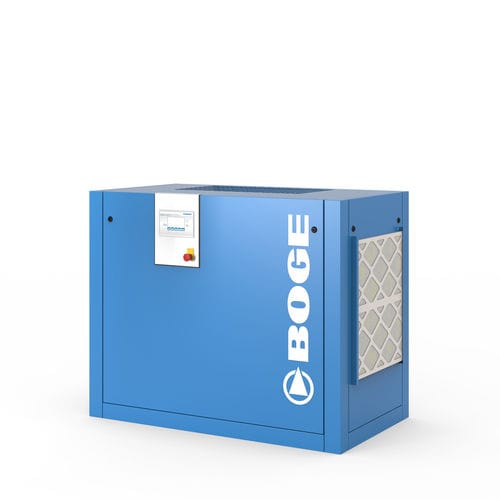

Screw compressor C-2 LF airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Other characteristics
- compact, low-noise, high-efficiency, direct-drive, with frequency control
- Pressure
Min.: 0 bar
(0 psi)Max.: 13 bar
(188.55 psi)- Flow
Min.: 0.51 m³/min
(18.01 ft³/min)Max.: 3.73 m³/min
(131.72 ft³/min)- Power
11 kW, 15 kW, 18 kW, 22 kW
(14.96 hp, 20.39 hp, 24.47 hp, 29.91 hp)- Length
1,610 mm
(63 in)- Width
1,380 mm
(54 in)- Height
915 mm
(36 in)- Weight
557 kg, 567 kg, 602 kg
(1,228 lb, 1,250 lb, 1,327.2 lb)
Description
Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. The frequency control with direct coupling guarantees maximum efficiency and flexibly adjusts the free air delivery to the individual demand at any time. Soft starts and stops conserve the material and prolong the service life. The latest generation of the C-series boasts increased efficiency, greater flexibility and perfect ergonomics as well as audibly lower noise emissions and easier maintenance. “Plug & work” is the order of the day!
Product
Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled
Advantages
ergonomic control
integrated design
extremely quiet
heat recovery can be integrated
