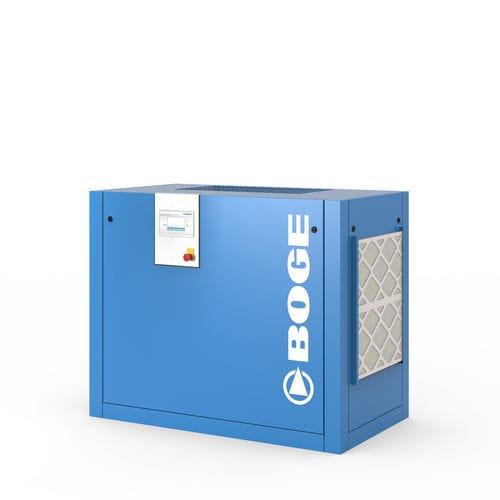

Screw compressor C-2 LFD
airelectrically-poweredstationary

Screw compressor - C-2 LFD  - BOGE - air / electrically-powered / stationary
Screw compressor - C-2 LFD  - BOGE - air / electrically-powered / stationary
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Other characteristics
compact, low-noise, high-efficiency, with refrigerant dryer, with frequency control
Pressure

Min.: 0 bar
(0 psi)

Max.: 13 bar
(188.55 psi)

Flow

Min.: 0.51 m³/min
(18.01 ft³/min)

Max.: 3.73 m³/min
(131.72 ft³/min)

Power

11 kW, 15 kW, 18 kW, 22 kW
(14.96 hp, 20.39 hp, 24.47 hp, 29.91 hp)

Length

1,610 mm
(63 in)

Width

1,380 mm
(54 in)

Height

915 mm
(36 in)

Weight

597 kg, 617 kg, 652 kg
(1,316.2 lb, 1,360.3 lb, 1,437.4 lb)

Description

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. The frequency control with direct coupling guarantees maximum efficiency and flexibly adjusts the free air delivery to the individual demand at any time. Soft starts and stops conserve the material and prolong the service life. The integrated refrigerant dryer allows for a complete compressed air station with minimal footprint and consistently high compressed air quality. “Plug & work” is the order of the day! Product Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled, with refrigerant dryer Advantages ergonomic control integrated design extremely quiet heat recovery can be integrated refrigerant dryer included
