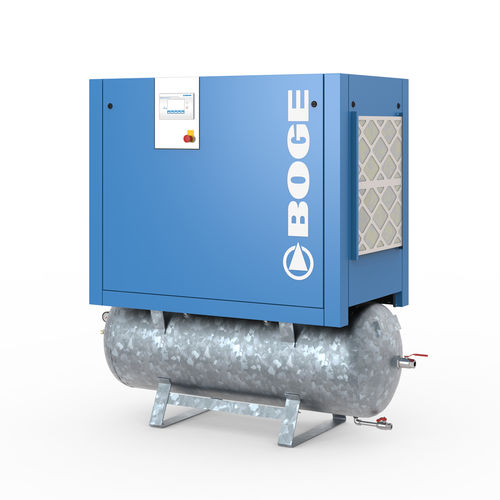

Screw compressor C-2 LFRairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Other characteristics
- compact, low-noise, tank-mounted, direct-drive, with frequency control
- Pressure
Min.: 0 bar
(0 psi)Max.: 13 bar
(188.55 psi)- Flow
Min.: 0.51 m³/min
(18.01 ft³/min)Max.: 3.73 m³/min
(131.72 ft³/min)- Power
11 kW, 15 kW, 18 kW, 22 kW
(14.96 hp, 20.39 hp, 24.47 hp, 29.91 hp)- Length
2,036 mm
(80 in)- Width
1,915 mm
(75 in)- Height
915 mm
(36 in)- Weight
698 kg, 708 kg, 718 kg, 753 kg
(1,538.8 lb, 1,560.9 lb, 1,582.9 lb, 1,660.1 lb)
Description
Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. The frequency control with direct coupling guarantees maximum efficiency and flexibly adjusts the free air delivery to the individual demand at any time. Soft starts and stops conserve the material and prolong the service life. Optimally tailored to your requirements with compressed air receiver and ergonomic control – efficient, compact compressed air station ready for connection.
Product
Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled, on receiver
Advantages
ergonomic control
integrated design
extremely quiet
heat recovery can be integrated
with receiver
