Screw compressor C-2 LFDR
airelectrically-poweredstationary

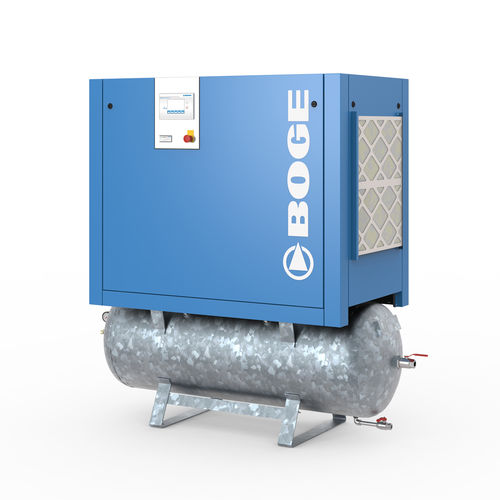

Screw compressor - C-2 LFDR - BOGE - air / electrically-powered / stationary
Screw compressor - C-2 LFDR - BOGE - air / electrically-powered / stationary
Screw compressor - C-2 LFDR - BOGE - air / electrically-powered / stationary - image - 2
Add to favorites
Compare this product


Characteristics

Technology
screw
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Other characteristics
compact, low-noise, tank-mounted, direct-drive, with refrigerant dryer, with frequency control
Pressure

Max.: 13 bar
(188.55 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 3.73 m³/min
(131.72 ft³/min)

Min.: 0.51 m³/min
(18.01 ft³/min)

Power

11 kW, 15 kW, 18 kW, 22 kW
(14.96 hp, 20.39 hp, 24.47 hp, 29.91 hp)

Length

2,036 mm
(80 in)

Width

1,915 mm
(75 in)

Height

915 mm
(36 in)

Weight

748 kg, 768 kg, 803 kg
(1,649.1 lb, 1,693.2 lb, 1,770.3 lb)

Description

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. The frequency control with direct coupling guarantees maximum efficiency and flexibly adjusts the free air delivery to the individual demand at any time. Soft starts and stops conserve the material and prolong the service life. Optimally tailored to your requirements with compressed air receiver, integrated refrigerant dryer and ergonomic control – efficient, compact compressed air station ready for connection with consistently high compressed air quality. Product Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled, on receiver, with refrigerant dryer Advantages integrated design extremely quiet various options can be integrated e.g. heat recovery with receiver
