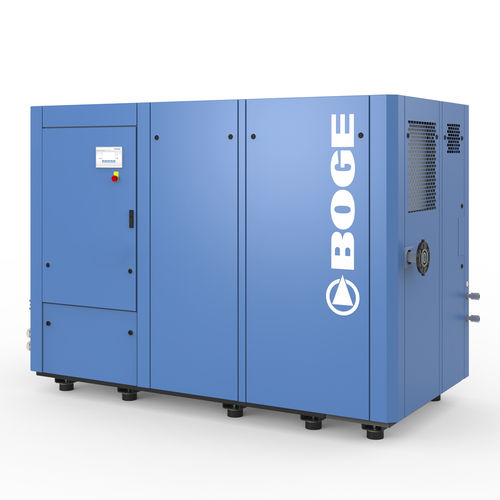

Screw compressor S-4 ..Dairelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-injected
- Other characteristics
- low-noise, energy-saving, with refrigerant dryer
- Pressure
Max.: 13 bar
(188.55 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 19.3 m³/min
(681.57 ft³/min)Min.: 2.3 m³/min
(81.22 ft³/min)- Power
55 kW, 75 kW, 90 kW, 110 kW
(74.78 hp, 101.97 hp, 122.37 hp, 149.56 hp)- Length
2,780 mm
(109 in)- Width
1,990 mm
(78 in)- Height
1,420 mm
(56 in)- Weight
Max.: 2,520 kg
(5,555.6 lb)Min.: 2,310 kg
(5,092.7 lb)
Description
BOGE’s latest generation of screw compressors impresses with surprisingly quiet noise levels, innovative separation technology, very simple maintenance and top efficiency values in their class. They are also available with an integrated energy-saving refrigerant compressed air dryer to reduce their footprint. These models are characterised by their generously designed components, extremely low pressure losses, very high reliability and longevity. The operating and control elements of the dryer are integrated into the operating panel and ensure a constant pressure dew point.
Product
Screw compressor, with oil-injection cooling, integrated refrigerant dryer
Advantages
no additional installation required
integrated into compressor reduces footprint
maintenance-friendly design for easy access
the quietest compressors in their class
Catalogs
No catalogs are available for this product.
See all of BOGE‘s catalogs
