Piston compressor PO...LTR
airelectrically-poweredstationary

Piston compressor - PO...LTR - BOGE - air / electrically-powered / stationary
Piston compressor - PO...LTR - BOGE - air / electrically-powered / stationary
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-free
Application domain
industrial
Other characteristics
compact, high-efficiency, with tank, direct-drive
Pressure

Max.: 15 bar
(217.56 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 1.34 m³/min
(47.32 ft³/min)

Min.: 0.46 m³/min
(16.24 ft³/min)

Power

4.4 kW, 6 kW, 8 kW, 11 kW
(5.98 hp, 8.16 hp, 10.88 hp, 14.96 hp)

Length

760 mm, 805 mm
(30 in, 32 in)

Width

1,284 mm, 1,430 mm
(51 in, 56 in)

Height

1,858 mm, 1,890 mm
(73 in, 74 in)

Weight

Max.: 447 kg
(985.5 lb)

Min.: 378 kg
(833.3 lb)

Description

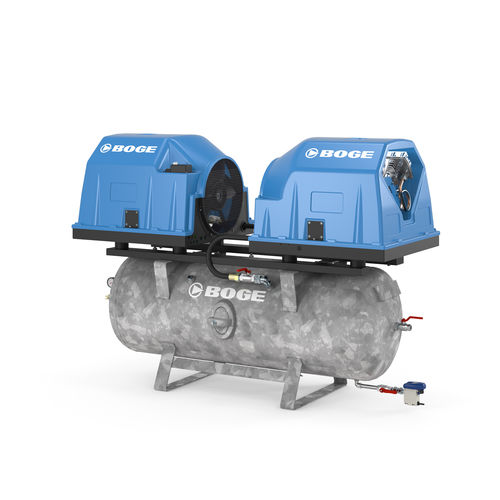

The new PO Series: for minimal energy consumption The completely oil-free piston compressors of the new PO Series produce high quality compressed air for even the most sensitive applications. The operation is wear-resistant and features an extremely compact design, with the closed hood concept combining industrial safety and environmental protection. The PO Series meets the requirements of the RoHS Directive (2002/95/EC) – proof of the innovative quality of BOGE. Double unit, mounted on a compressed air receiver. Product Oil free piston compressor, direct coupled,, double unit, compressed air receiver Advantages with receiver designed for 100% duty cycle available as twin unit
