Piston compressor P...LDR
airelectrically-poweredstationary

Piston compressor - P...LDR - BOGE - air / electrically-powered / stationary
Piston compressor - P...LDR - BOGE - air / electrically-powered / stationary
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
stationary
Lubrication
oil-lubricated
Application domain
industrial
Other characteristics
tank-mounted, direct-drive, with dryer, modular
Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145.04 psi)

Flow

0.08 m³/min, 0.16 m³/min
(2.83 ft³/min, 5.65 ft³/min)

Power

0.7 kW, 1.3 kW
(0.95 hp, 1.77 hp)

Length

1,260 mm
(50 in)

Width

1,100 mm
(43 in)

Height

570 mm
(22 in)

Weight

133 kg, 139 kg
(293.2 lb, 306.4 lb)

Description

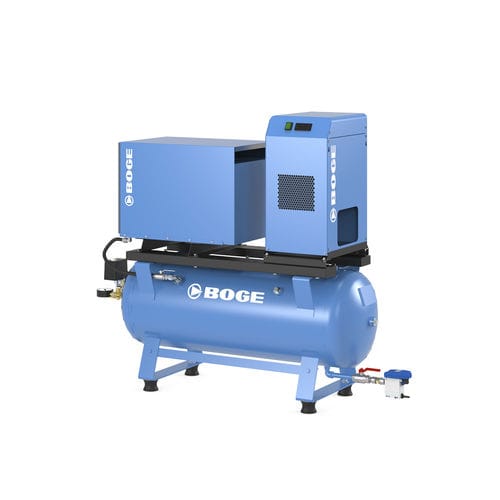

Industrial version with 100% duty cycle Piston technology that sets standards: BOGE's P-series brings together its concentrated expertise in the construction of piston compressors. The tried and tested, uniform design principle puts the priority on quality and durability – be it in the skilled trades sector or industry. Whether mounted on a receiver with a compressed air dryer or functioning as a duplex system: Thanks to the versatile modular structure, the P-series offers a wide range of options for upgrading – to the state of the art and thus extremely future-proof! All models are also available as 230 V/1-phase models and as ultra sound-insulated version. Product Piston compressor oil-lubricated, on a compressed air receiver with compressed air dryer Advantages 100% duty cycle (S1) high ambient temperature industrial quality low maintenance with receiver
