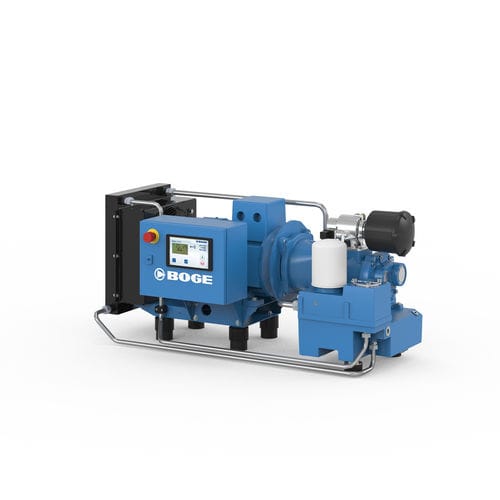

Screw compressor C...L airelectrically-poweredstationary
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- stationary
- Lubrication
- oil-lubricated
- Application domain
- industrial
- Other characteristics
- compact, low-noise, high-efficiency, direct-drive
- Pressure
Max.: 10 bar
(145.04 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 2.25 m³/min
(79.46 ft³/min)Min.: 1.03 m³/min
(36.37 ft³/min)- Power
7.5 kW, 11 kW, 15 kW
(10.2 hp, 14.96 hp, 20.39 hp)- Length
1,170 mm, 1,335 mm
(46 in, 53 in)- Width
600 mm, 610 mm
(24 in, 24 in)- Height
600 mm, 693 mm
(24 in, 27 in)- Weight
260 kg, 290 kg, 300 kg
(573.2 lb, 639.3 lb, 661.4 lb)
Description
Short connections and fewer pipes thanks to integrated design with the BOGE compact module – the C Series is space-saving, extremely efficient and reliable.
Product
Compact screw compressor, direct coupled, oil lubricated
Advantages
heat recovery can be integrated
extremely quiet
