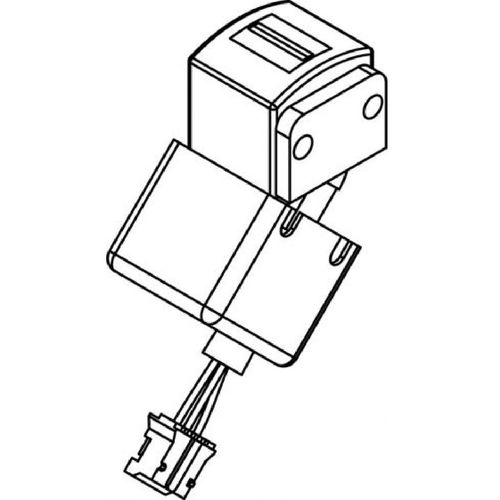

Character recognition magnetic head HW-A-R-100-02
Add to favorites
Compare this product
Characteristics
- Applications
- character recognition
Description
forLoCo read
read voltage at IS: 70 ± 25 % mVpp
resolution:@ 200/100 FRPI: 85 %
inductance @ 1 kHz / 50 mV: 1270 mH ± 20%
DC resistance: 1700 Ω ± 20 %
gap length: 0.05 mm
Measurement Conditions
recording medium: 3M 777
relative velocity: 25.4 cm/s
recording density: 200 FRPI
Application - MICR (read)
Number of Tracks - 1
Surface Treatment - yes
Product Status - active
