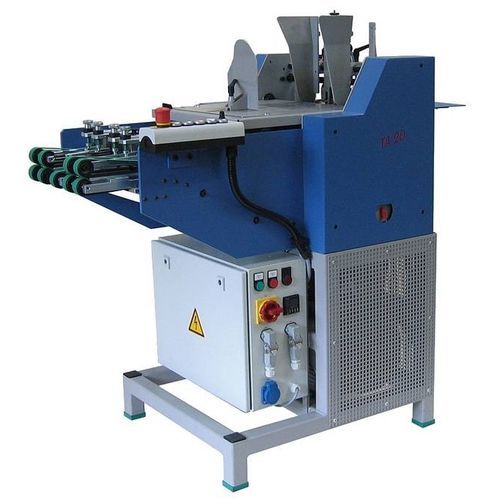

Drum feeder TA 20
automaticindustrialcutting

drum feeder
drum feeder
Add to favorites
Compare this product


Characteristics

Type
drum
Operating mode
automatic
Product applications
industrial, paper, cutting
Other characteristics
compact, high-precision, high-performance

Description

High-performance drum feeder with low feed height for comfortable working. With a capacity of up to 20,000 cycles/h, the TA 20 is also deployed for the small folds of rotary printing sheets. • Capacity : 3’000 - 20’000 sheets/h • Format min. : 75 x 148 mm • Format max. : 310 x 430 mm • Product thickness : max. 5 mm • Pressure vacuum pump : 25 m3 • Feeding height : 1'090 - 1'130 mm, with height-adjustable feet • Exit height : 980 - 1'020 mm • Exit extension : 250 mm • Deposit table : behind • Fixing cotter : for staple • Space requirement : approx. 1'300 x 700 mm (L x B) • Weight : approx. 340 kg • Power supply : 3 x 400VAC / N / PE 50/60Hz / 16A • Power : 0,75 kW • Vacuum pump : 1,5 kW
