Manual stacking machine STA 550 BK

automaticcuttingin-line

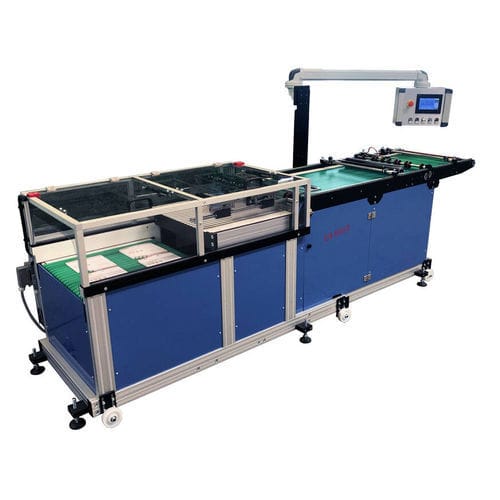

STA 550 BK Automatic stack delivery, for inline production with BSR 550 Servo rotary die-cutter For the counted stacking of small format labels, business cards and cards of all kinds, whether rectangular, square, round or contour-cut, for up to 9 product streams. • Automated process, reduces labor to a single person • Counted stacking • Fast make-ready due to external format change • Can be integrated into downstream systems such as robots, banding or packaging machines • Infeed hight : fixed hight to BSR 550 Servo • Sheet format max. : 550 x 750 mm • Sheet format min. : 210 x 297 mm • Format min. : 50 x 50 mm • Format max. : 530 x 230 mm • Collector shaft : For up to 9 product streams, depending on format size • Stack height : max. 150 mm • Outfeed : manual pickup, roller table, 90° interface for cellophane wrapping machine • Mobility : mobile on wheels • Space requirement : approx. 1'880 mm x 1‘580 mm (L x W) • Weight : approx. 1'000 kg • Power supply : 3 x 400VAC / N / PE 50/60Hz / 16A (Standard) • Control : 24 VDC • Capacity of drives : 4,5 kW
