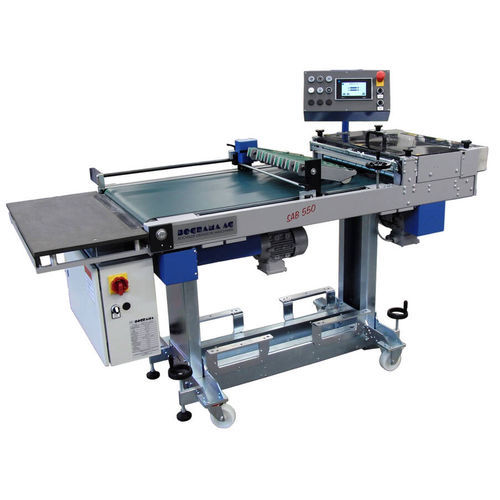

Delivery system for industrial applications SAB series

mobile

The SAB 550 / 750 stream delivery is used for multiple-up production. Formats from A3 to 30 x 30 mm (minimum) can therefore be delivered in streams • Round belt infeed for optimised product delivery • Powered top belts with size-independent stream belt • Preselection and total counters • Motorised height adjustment Available in two working widths, optionally with stream belt extension to 2 meters • Working width : max. 550 mm / *750 mm • Height adjustment : motor driven, 690 - 950 mm • Feed : with round belts • Speed : 20 - 200 m/min, adjustable • Stream belt : 40 mm retrectable to infeed • Stream belt length : 1'050 mm / optional 2'000 mm • Upper belts : 8 units, 35 mm, driven • Overlap : 10 - 100 mm • Counter : preselection and sum counter, scale of 0 - 40 mm or jump feed, adjustable, performance indicator • Space requirement : approx. 2'050 x 800 mm / *1'050 mm (L x B) • Weight : approx. 300 kg / *350kg • Power supply : 3 x 400VAC / N / PE 50/60Hz / 16A • Power : 2 x 0,37 kW • Lift motor : 0,25 kW
