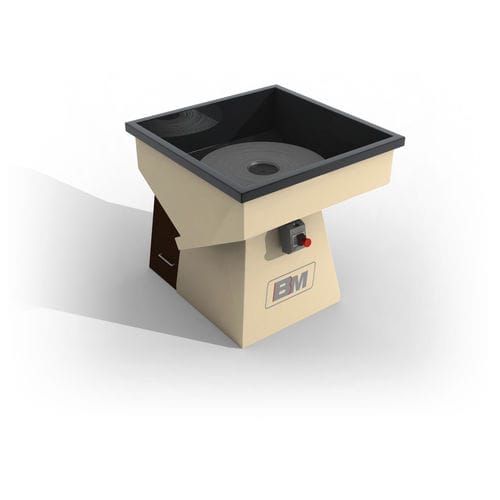

Surface grinding machine BMH-D/1,5

glasshorizontal

The horizontal flat-grinding machine is earmarked for the cold working of flat surfaces of glass and ceramic articles, stone, etc. Hand-held articles are pushed against the top surface of the abrasive disk. This is a versatile machine giving the possibility to use loose or bonded abrasives in a wide range of spindle revolutions.The machine aslo meets stringent requirements specified for the use of advanced types of diamond-impregnated tools. A wire-reinforced concrete base makes the grinding machine perfectly rigid. A specially designed spindle is mounted at the center of the concrete base. The grinding machine is driven with the aid of an asynchronous motor that is located below a protecting hood on a tensioning plate in the rear cestion of the machine. A steel tray with sloping bottom (splach guard) is mounted at the top of the concrete base. The revolutions of the machine are selected by taking into consideration the type of abrasive tool used. If required by the customer, the machine can also be fitted with a stepless control of the revolutions.
