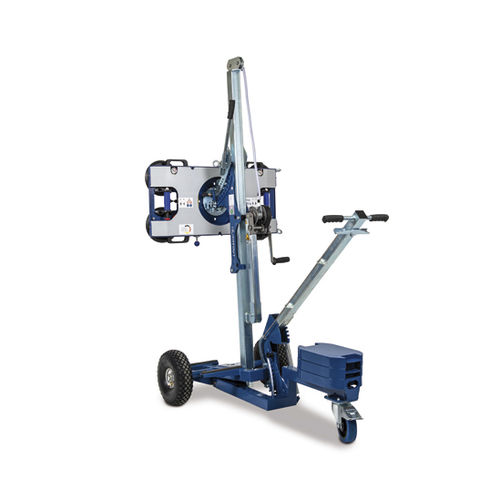

Manual lifting device BO 88.01

for platesfor glazingglass

The tendency towards increasingly larger glass constructions in architecture and the growing use of 2-gap insulating glass pose new challenges for glass processors and assemblers: Elements which could previously be moved by two people have now become so heavy that they can hardly be transported manually on site or within company premises any longer. With the Liftmaster B1 Bohle has developed an innovative handling and mounting aid which enables transporting objects of up 180 kg such as glass panes, window elements or metal and stone sheets easily and safely - by only one person. • manual pumping • Length 1200 mm • Height 1950 mm • Width 800 mm (with extended axles for widening the gauge 1.1 m) • Includes vacuum lifter: can be rotated by 360° · can be removed very easily and used separately together with a crane · has a dual circuit vacuum system with 4 suction pads · is very flat and compact · is equipped with a vacuum indicator for monitoring the vacuum · the vacuum is generated via a hand pump, therefore ready for use at all times (no previous charging of batteries required) · weight of the lifting equipment approx. 22 kg Product highlights • Power / energy independent dual circuit vacuum system as per DIN EN 13155 • Ideal for transport within company premises and on construction sites • Easy and secure handling of structural components of up to 180 kg • Easy assembly of structural components • Can be disassembled easily, fits in almost any estate car • Stable construction • Rack can be rotated and tilted • Very compact and manoeuvrable • Fits through standard doors • Handle is height adjustable
