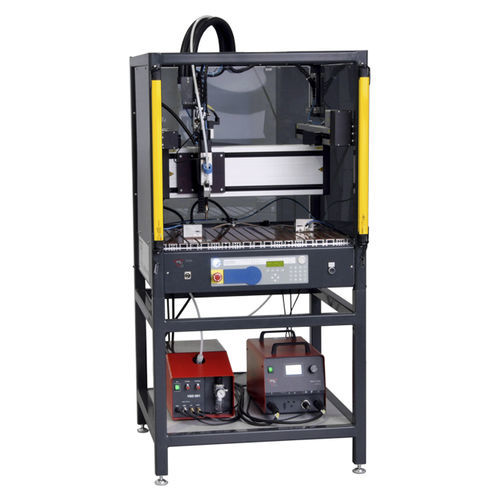

Capacitor discharge welding machine F 4050

drawn arcautomaticstud

The cost-effective entry-level model F 4050 impresses with its high-quality features. A robust welded steel machine frame as well as the safety housing with protective shields and light curtain are standard equipment. Series PRO-C, PRO-I and PRO-D stud welding units as well as the stud welding heads KHA-200F and KKA-200F are applied. The working area of the machine is 400 x 500 mm. It is suitable for different welding methods (capacitor discharge, short cycle and drawn arc stud welding). Even for untrained operators the F 4050 is easy to operate and to program and can be retooled very fast. working area X/Y: 400 x 500 mm max. number of stud welding heads: 1 max. operating speed of the X-/Y-axis: 6 m/min repeat positioning accuracy of the welded studs: +/- 0,2 mm fast and easy programming by operating software PRO-STUD (incl. DXF data converter) (DXF data import: The customer-specific DXF-data are automatically converted and transfered to the controller. Visualization of the program sequence.) very easy operation by PC with Windows 10, 17" monitor (optional as touchscreen), keyboard and mouse with ergonomic mounting; keypad at the front of the machine ample program memory welding parameter monitoring and documentation (by stud welding units PRO-C/PRO-I/PRO-D) - recording of welding current, welding time and arc voltage for each weld - recording of stud travel (lift, piston runtime, immersion depth) for each weld [only when an automatic welding head with travel measuring system is used]
