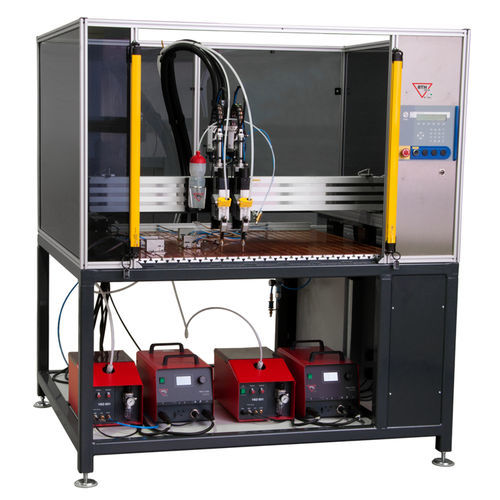

Arc welding machine Series T

automaticstudprecision

The fully automatic series T stud welding machines warrant a maximum of precision and reliability through their robust construction and the use of high-value components. The available working areas as well as numerous possible option enable the customer-specific design of the machines. working area X/Y: 800 x 800 mm or 1300 x 800 mm (Other dimensions upon request as special production.) The entire working area can be reached by each welding head. max. number of stud welding heads: 3 (The machine concept is designed for three working stations. If a milling unit is used at the most two stud welding heads can be mounted.) max. operating speed of the X-/Y-axis: 12 m/min repeat positioning accuracy of the welded studs: +/- 0,2 mm fast and easy programming by operating software PRO-STUD (incl. DXF data converter) (DXF data import: The customer-specific DXF-data are automatically converted and transfered to the controller. Visualization of the program sequence.) very easy operation by PC with Windows 10, 17" monitor (optional as touchscreen), keyboard and mouse with ergonomic mounting; keypad at the front of the machine ample program memory welding parameter monitoring and documentation (by stud welding units PRO-C/PRO-I/PRO-D) - recording of welding current, welding time and arc voltage for each weld - recording of stud travel (lift, piston runtime, immersion depth) for each weld [only when an automatic welding head with travel measuring system is used]
