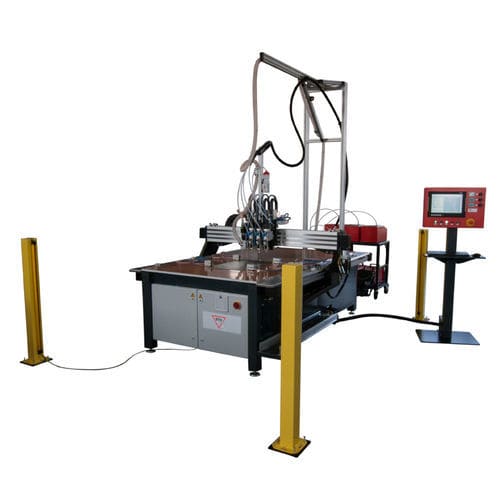

Arc welding machine Series V

automaticstudCNC

The fully automatic series V stud welding machines warrant a maximum of precision and reliability through their robust construction and the use of high-value components. The available working areas as well as numerous possible option enable the customer-specific design of the machines. working area X/Y: 1000 x 1500 mm, 1000 x 2250 mm or 1500 x 3000 mm (Other dimensions upon request as special production.) The entire working area can be reached by each welding head. max. number of stud welding heads: 4 (The machine concept is designed for four working stations. If a milling unit is used at the most three stud welding heads can be mounted.) max. operating speed of the X-/Y-axis: 30 m/min repeat positioning accuracy of the welded studs: +/- 0,2 mm fast and easy programming by operating software PRO-STUD (incl. DXF data converter) (DXF data import: The customer-specific DXF-data are automatically converted and transfered to the controller. Visualization of the program sequence.) very easy operation by PC with Windows 10, 17" monitor (optional as touchscreen), keyboard and mouse in operating panel ample program memory
