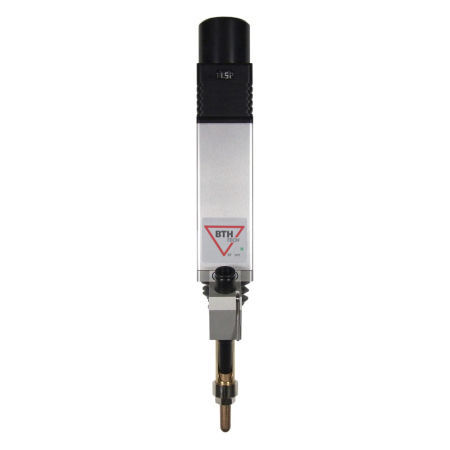

The automatic stud welding head KKA-200F is designed for capacitor discharge (contact method) stud welding. It can be used on CNC stud welding machines, roboters, handling systems, stationary machining centres and conventional stud welding units. The KKA-200F is suitable for automatic use (automatic stud feeding by stud feeder VBZ) and semi-automatic use (manual stud feeding).
spring pressure adjustable
spring pressure display
suitable for automatic use (automatic stud feeding into the loading tube by stud feeder VBZ) and semi-automatic use (manual stud feeding into the loading tube) [automatic transport of stud from loading tube into chuck]
can be used on CNC stud welding machines, roboters, handling systems, stationary machining centres and conventional stud welding units
very well suited for welding on problematic surfaces (e.g. zinc, tinder)
highest stud positioning accuracy and welding reproducibility through precision linear guide of welding piston
highest operational repeatability, high welding quality, high reliability
simple handling
quick and simple retooling
quick assembly and easy maintenance through quick-change system and pluggable connections
high service life through high-grade mechanical components
robust housing as protection against welding spatters and dirt
precision guidance protected from welding spatters
compact construction
low weight (can be used on light robots and weak support systems)
optional: adaptation to special welding elements
