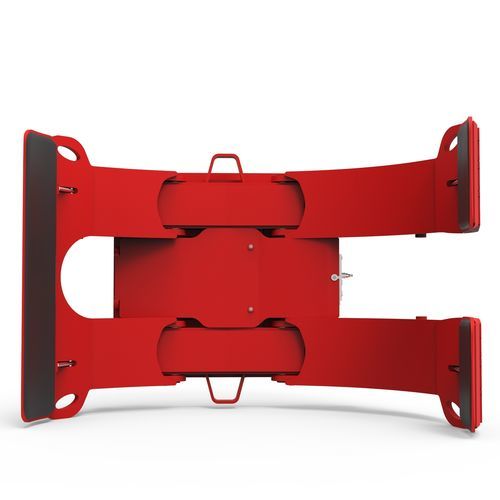

Paper roll materials handling clamp AR-33R series

For handling of small and medium size rolls in paper mills, warehouses and printing houses. Range: 2500 Kg - 3500 Kg • Rotating paper roll clamp for safe and effective vertical and horizontal roll handling. • Slim and smooth arm and frame design, optimal visibility and advanced hydraulic operation. • Pivoting arm movement. Short and long arms. Non-split long arm for single roll handling. Split arm for 1 - 2 roll handling. • 180-degree rotation. Hydraulic cushioning in the vertical end positions. • All hydraulic functions protected with built-in pressure relief valves and check valves. All service and maintenance points easily available. Notes: • Two hydraulic functions required. • Models AR-33RHF/RJF with fixed (non-moving) short arm. • Models AR-33RH/RJ with hydraulically positionable short arm. • See hydraulic specifications page for pressure and flow rate recommendations. • Standard contact pads: cast pad with high-friction surface. • Minimum 5-degree forward tilt on lift mast is required for horizontal handling. • For 0-degree tilt, special arms are available. Consult Bolzoni. Options: • Special roll ranges. • Arm height D = 830 mm. • Contact pad options: steel-sprayed, rubber faced, polyurethane faced, full length contact pads.
