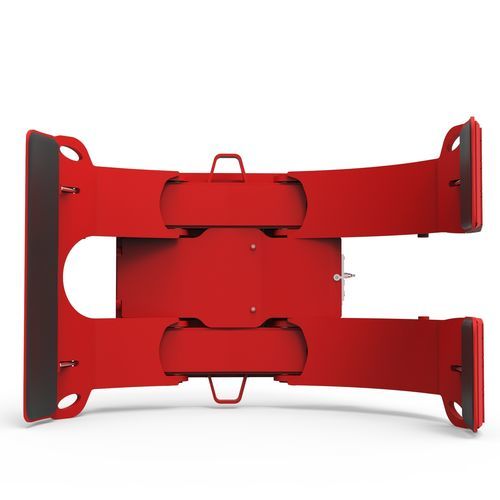

Paper roll materials handling clamp AR-40R series

Range: 2700 kg - 4600 kg • Rotating paper roll clamp for safe and • effective vertical and horizontal roll • handling. • Slim and smooth arm and frame design, • optimal visibility and advanced hydraulic • operation. • Pivoting arm movement. Short and long • arms. Non-split long arm for single roll • handling. Split arm for 1 - 2 roll handling. • 180-degree rotation. Hydraulic cushioning in the vertical end positions. • All hydraulic functions protected with • built-in pressure relief valves and check • valves. All service and maintenance points easily available. Notes: • Two hydraulic functions required. • See hydraulic specifications page for pressure and flow rate recommendations. • Standard contact pads: cast pad with high-friction surface. • Minimum 5-degree forward tilt on lift mast is required for horizontal handling. • For 0-degree tilt, special arms are available. Consult Bolzoni. Options: • Special roll ranges. • Contact pad options: steel-sprayed, rubber faced, polyurethane faced, full length contact pads.
