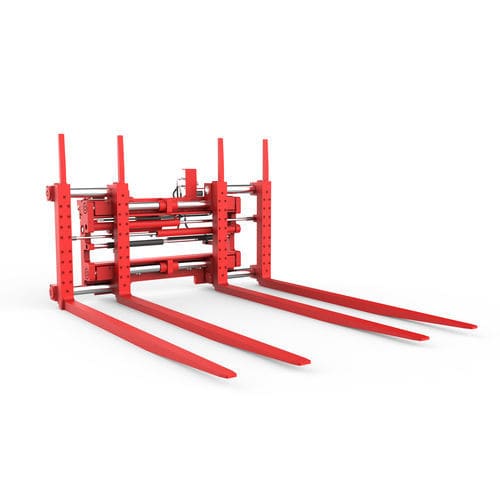

Forklift truck pallet fork 6-54 series

for pallet handling

For handling of two or four pallets in depth in beverage industries and breweries. • Shaft Guide System. • To handle either 2 or 4 pallets at a time. • Excellent visibility to ensure safe working conditions. • Forks synchronised movement for a high level of efficiency, when manoeuvring into the pallets. • Forks are hydraulically adjusted by a single lever from the driver’s position. • Equipped with separate sideshift. Notes: • Additional hydraulics required: : two • 6-5404G/05G/06F/07F internal separate sideshift; 6-5408N/09N/10N with bolt-on sideshift. • Types 6-5404/05 “a”/06/07F with interchangeable forks. • 10 mm offset between inner and outer forks • Minimum required carriage width at forklift: 6-5404G/05G 980 mm; 6-5406F/07F 1100 mm; 6-5408N/09N/10N 1500 mm (160 mm SS); 1350 mm (100 mm SS). Options: • Automatic lubrication system (F and G Series). • G-Series: Heavy duty brass wear pads on lower sideshift (abrasive ambience, e.g. glass or cement industry). • Fork length 2400 mm without extra cost. • Alternative forks lengths or sections. • All forks on equal level. • Alternative load backrests.
