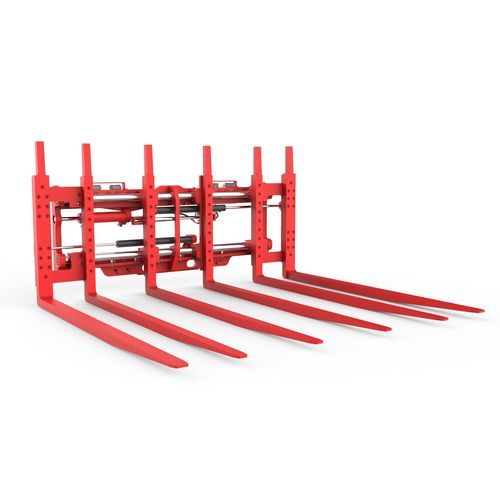

Forklift truck pallet fork 6-56 series

for pallet handling

For handling of two, four or six pallets in depth in beverage industries and breweries. Plus: • Shaft Guide System. • To handle (2): 4 or 6 pallets at a time. • Excellent visibility to ensure safe working conditions. • Forks synchronised movement, to increase forklift productivity when manoeuvring into the pallets. • Forks are hydraulically adjusted by a single lever from the driver’s position. • Equipped with a built-on sideshift. Notes: • Additional hydraulics required: two. • The unit has a built-on sideshift • Typ 6-5607F with interchangable forks • 10 mm offset between inner and outer pair of forks • 6-5607F for 6/4/2 Euro pallets lengthwise (L 1200 x B 800 mm) • 6-5610N is for 6/4/2 standard pallets (L 1000 x B 1200 mm) • 6-5612N (a) is for 6/4 euro pallets (L 1200 x B 800 mm) • 6-5612N (b) for additional 6/4 pallets (L 1100 x B 1070 mm) • Minimum carriage width of forklift: 6-5607F 1120 mm; 6-5610N 2250 mm; 6-5612N A = 1700 mm 1600 mm • A = 2200 mm 1620 mm. Options: • Alternative fork lengths- or sections. • 6-5607F Sideshift +/- 150 mm. • Alternative load backrests. • Single arm control. • Automated Lubrication System.
