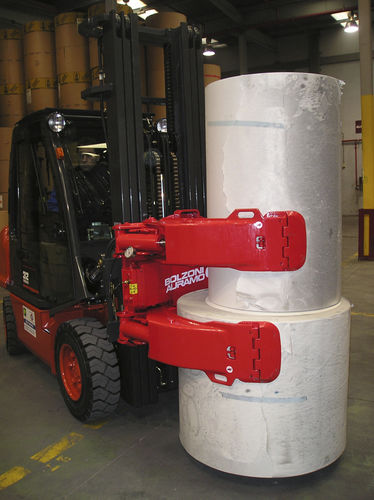

Paper roll materials handling clamp RA-NJ series

For handling of large size rolls in paper mills, warehouses, printing and converting houses. Range: 5000 Kg - 7000 Kg • Rotating paper roll clamp for vertical and • horizontal roll handling of 1-2 rolls. • Pivoting arm movement. Short and long • arms. Split long arm. Several contact pad options in standard series. • 180-degree rotation, with hydraulic cushioning in the vertical positions. • Positionable short arm. Notes: • Two hydraulic functions required. • See hydraulic specifications page for pressure and flow rate recommendations. • Standard contact pads: rubber faced or steel sprayed. • Minimum 5-degree forward tilt on lift mast is required for horizontal handling. • For 0-degree tilt, special arms are available. Consult Bolzoni. Options: • Special roll ranges. • Contact pad options: polyurethane faced, full length contact pads, cast pads not available.
