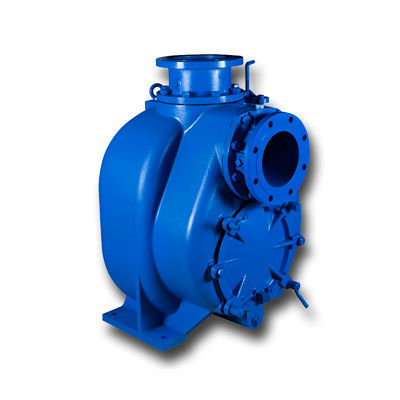

Screw pump CEB series

waterwastewaterelectric

The CEB series are self-priming pumps designed to avoid clogging of work with wastewater. Its self-priming design is recognized as the most advanced in self-priming pumps. Suitable and developed for municipal sewage treatment projects, concentrated sewage treatment systems, industrial wastewater. Its self-priming design is recognized as the most advanced in self-priming pumps. Suitable for working in sanitation and sewerage systems. Characteristics Reliable and stable operation. Clockwise rotation, viewed from the engine. Axial aspiration, radial discharge. Ideal construction for solving common problems. Removable cover with handle and extractor screw to provide access to the inside of the pump allowing return to service in minutes. Wide margin, easy passage of solids. Semi-open impeller. Possibility of installation at ground level, only with the suction pipe (the pump has to be filled to start the self-priming process). Average density: 1,2 x 103 kg /m3 PH5-9. Average volume ratio of solids: 2%. Solids pitch SBC 2=38 mm SBC 4; SBC 6; SBC 8; SBC 10=76 mm. Maximum flow 775 meters. Maximum working pressure: See hydraulic data curve or technical data. Maximum suction: See hydraulic data curve or technical data. Applications Transfer of any non-explosive or non-flammable liquid. Rainwater sewage. Projects of municipal drainage, or of work in construction Wastewater from general industry, paper mills, textiles, food processing plants, chemical industries, power companies, mining. Wastewater discharge in residential areas, water purification systems, tanning industries, fish breeding in river or pond. Wine and sugar racking.
